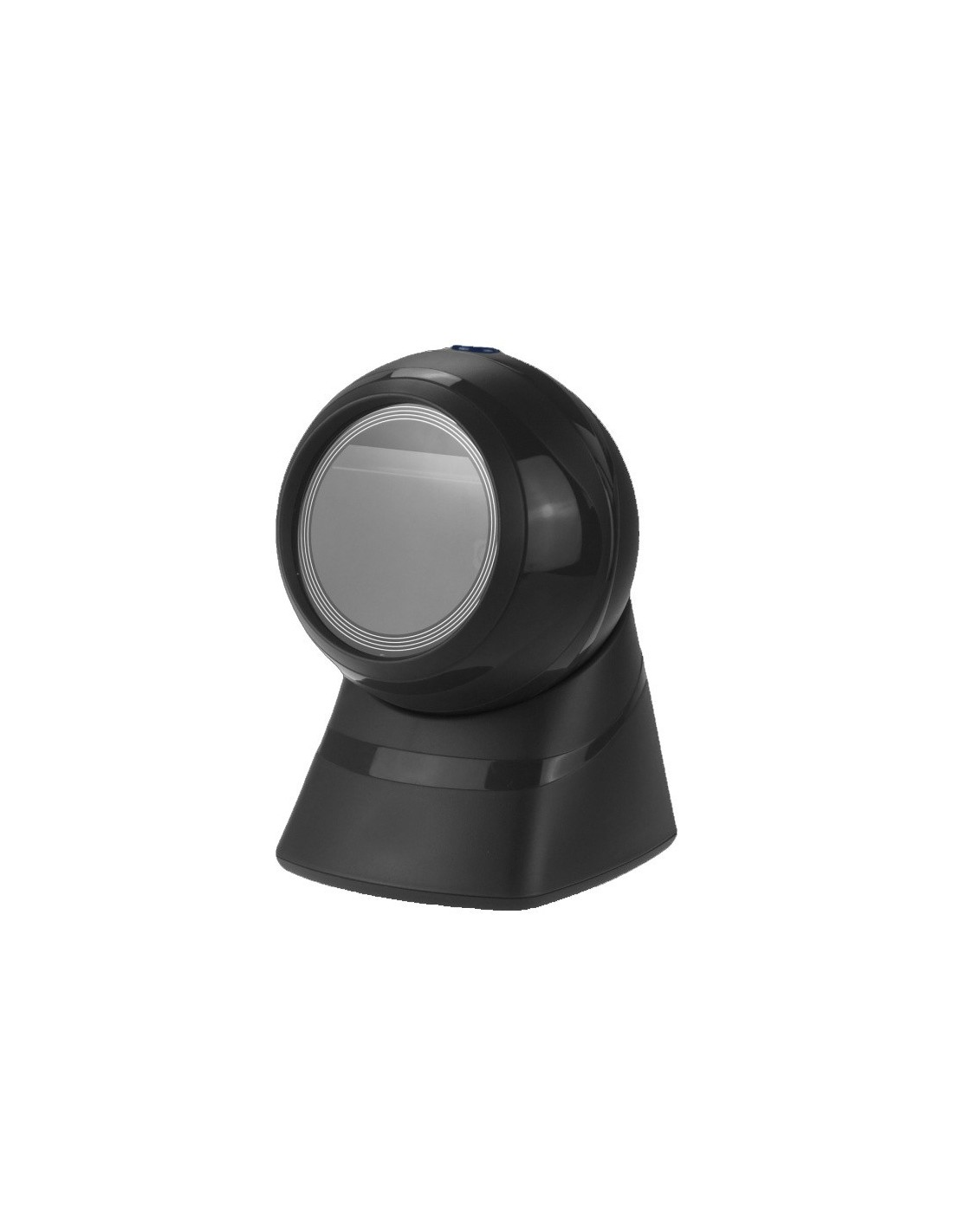

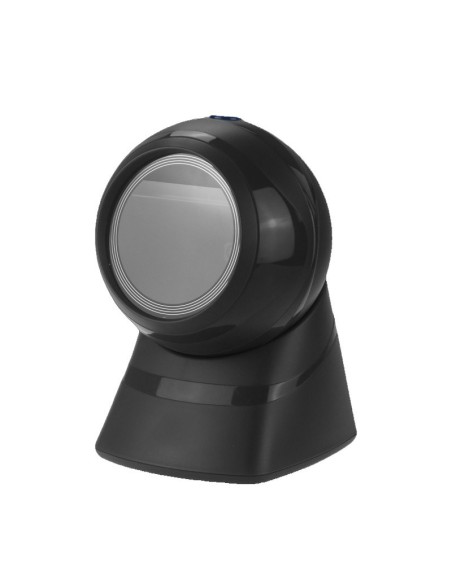

LCB PREMIER MS3-2D DESKTOP NEGRO PN: ILM2DUSBBDK EAN: 8437019184834

Perfomance parametres
Interface USB
System supported Linux, Android, Windows XP, 7, 8, 10, MAC
Language supported Multi language
Sensor Planar CMOS sensor 480 * 640
Light source White Light LED Illuminate
CPU 32-bit ARM MCU + DSP
Motion tolerance QR 10mil: 85cm/sec
Resolution Code39 ≥5mil
Bit error rate 1/5,000,000
Reading Mode Image
Trigger mode Auto-Sensing
Switch Button Standby Mode
Promt mode Buzzer + Indicate Light(LED)
Print contrast ≥30%
Decoding capacibility 1D
UPC-A, JAN/EAN-8, JAN/EAN-13, Code 128, Code 39, Codabar, Code 93, Interleaved 2 of 5, UPC-E,
UCC/EAN 128, GS1-128, ISBN-13, Industrial (Standard) 2 of 5, Code 11, MSI Plessey, Code32, GS1
Composite, GS1 Databar, Composite, Matrix 2 of 5
Decoding capacibility 2D PDF417, Micro QR Code, QR Code, Aztec code, Data Matrix
Depth of field QR Code 12.50mil (7 bit): 2cm - 15cm, PDF417 9.17mil (7 bit): 3cm -15cm, Data Matrix 12.50mil (8
bit): 2cm - 11cm, Code 128 7.50mil (15 bit): 2cm - 12cm, EAN13 (10mil): 3cm - 12cm
Scanning distance
Scanning angel Roll360°, Pitch45°,Yew60°
Material ABS+PC
Power supply DC 5V ±5%
Operating current 0.09A(Standy), 0.20A(Working), 250mA(Max)
Weight 0.45W(Standy), 1.00W(Working), 1.25W(Max)
Size 230.0g±5g(Without Cable)
Color L*W*H: 114.1 * 107.8 * 156.3mm
Button lifespan Black / Grey
Enviroment parameter
IP grade IP52
Operating temperature 0 to 50℃ / 32 to 122℉
Storage temperature 0 to 50℃ / 32 to 122℉
Operating humidity 20% to 85%（No Condensation）
Storage humidity 20% to 85%（No Condensation）
ESD Protection 15KV air discharge
Shock Resistance 1.2m free fall on concrete surface
Environment Illumination 0~100000LUX
