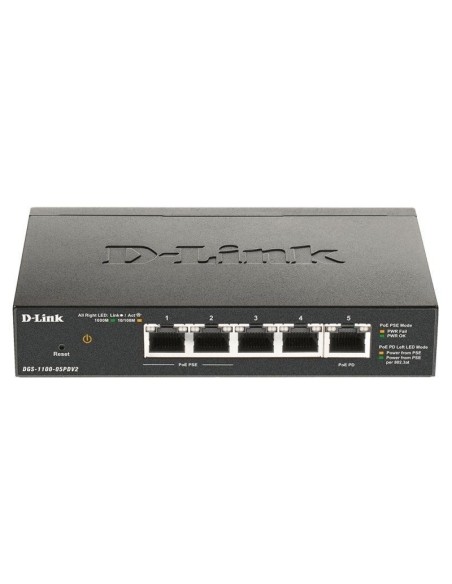

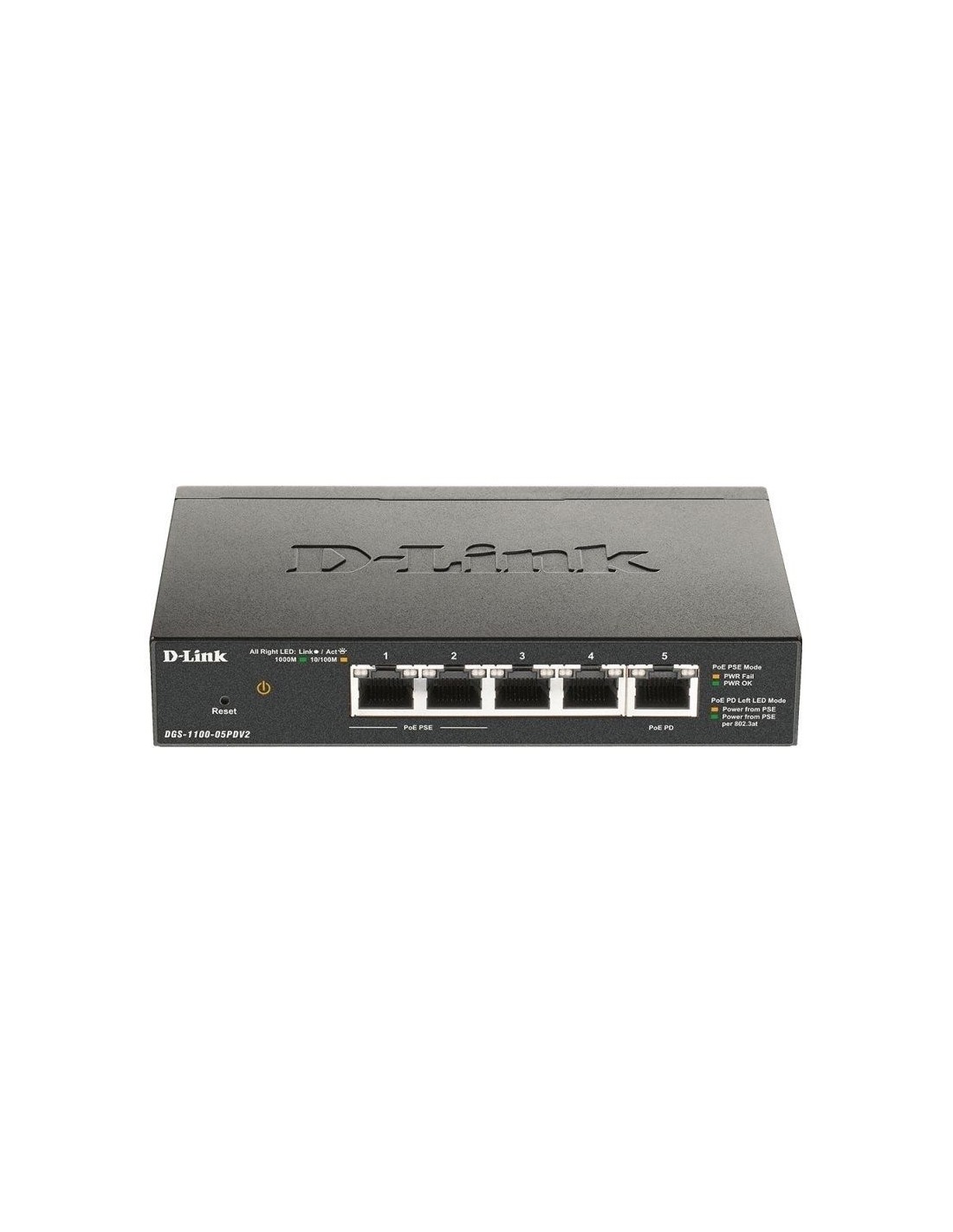

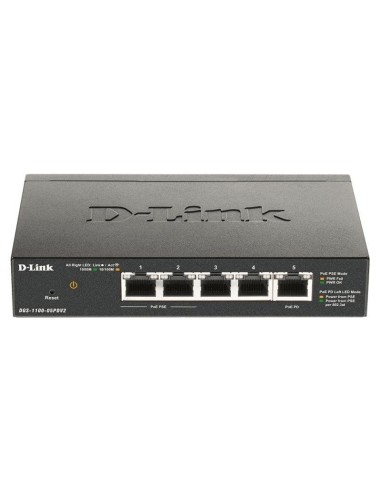

SWITCH GIGA 5PTOS DLINK DGS-1100-05PDV2 POE PN: DGS-1100-05PDV2 EAN: 790069453298
- Tipo de interruptor: Gestionado
- Calidad de servicio (QoS) soporte: Si
- Administación basada en web: Si
- Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 5
- Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000)
- Bidireccional completo (Full duplex): Si
- Transmisión semidúplex: Si
- Auto MDI / MDI-X: Si
- Ethernet LAN, velocidad de transferencia de datos: 10000 Mbit/s
- Capacidad de conmutación: 10 Gbit/s
- Tasa de reenvío: 7,44 Mpps
- Tabla de direcciones MAC: 2000 entradas
- Características de DHCP: DHCP client
- Seguridad de puerto estático: Si
- Soporte SSH/SSL: Si
- Entradas de direcciones MAC: Entradas de direcciones MAC estáticas
- Color del producto: Negro
- Certificación: FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
- Memoria Flash: 2 MB
- Sin ventilador: Si
- Tiempo medio entre fallos: 2357475 h
- Consumo de energía (max): 24,08 W
- Energía sobre Ethernet (PoE): Si
- Cantidad de puertos Power over Ethernet (PoE): 2
- Potencia por puerto de alimentación a través de Ethernet (PoE): 18 W
- Intervalo de temperatura operativa: 0 - 40 °C
- Intervalo de temperatura de almacenaje: -40 - 70 °C
- Intervalo de humedad relativa para funcionamiento: 0 - 90%
- Intervalo de humedad relativa durante almacenaje: 0 - 95%
Technical Specifications
General
Hardware Version
• Rev. B
10/100/1000 Ports
• 5
Port Standards & Functions
• IEEE 802.3, 802.3u, 802.3ab compliant
• IEEE 802.3x Flow Control
• IEEE 802.3az EEE compliant
• IEEE 802.3af compliant (DGS-1100-05PD)
• IEEE 802.3af/at compliant (DGS-1100-08P)
• Half/Full-duplex operation at 10/100
• Full-duplex operation at 1000Mbps
• Auto-Negotiation for each port
• Auto MDI/MDIX
Switching Capacity
• 10 Gbps
Max. Forwarding Rate
• 7.4 Mpps
MAC Address Table Size
• 2K Entries
Packet Buffer
• 1 Mbits
Flash Memory
• 2 Mbytes
Power over Ethernet
PoE Standard
• 802.3af
PoE Capable Ports
• Ports 1-2 (PSE)
• Port 5 (PD)
PoE Power Budget
• 18W with 802.3at input power
• 8W with 802.3af input power
Physical & Environmental
Power Input
• 802.3af/at PoE input only (no external Pwr Supply)
Max. Power Consumption
• 23.92 W (PoE on)
• 2.32 W (PoE off)
Standby Power Consumption
• 1.46 W
Ventilation
• Fanless
Acoustics
• 0 dB(A)
Heat Dissipation
• N/A
Operating Temperature
• 32°F to 104°F (0°C to 40°C)
Storage Temperature
• -40°F to 158°F (-40°C to 70°C)
Operating Humidity
• 0% to 90% non-condensing
Storage Humidity
• 0% to 95% non-condensing
Dimensions (W x D x H)
• 5.91” x 3.82” x 1.10” (150 x 97 x 28 mm)
Weight
• 0.84 lbs (0.38 kg)
EMI Certifications
• FCC Class B, CE Class B, VCCI Class B, BSMI, CCC
Safety
• cUL, CE LVD, CB, BSMI, CCC
MTBF
• 2,346,941 hours
Software Features
VLAN
• Port-based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
• Supports 32 static VLAN groups
• Max. 4094 VIDs
L2 Features
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
• IGMPv1/v2 Snooping
• IGMPv3 Awareness
• Supports 128 Groups
• 802.3ad Link Aggregation
• 1 group, 2-4 ports per group
• Loopback Detection
• Cable Diagnostics
• Port Mirroring
• One-to-One
• Many-to-One
• Statistics
• Tx Ok
• Tx Error
• Rx Ok
• Rx Error
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
QoS
• 802.1p Quality of Service
• 4 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• Port Based
• Ingress: minimum granularity 8 Kbps
• Egress: minimum granularity 8 Kbps
Security
• Traffic Segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• Static MAC Address
• Max. 32 entries
Management
• Web-Based GUI:
• Supports IPv4
• D-Link Network Assistant Utility
Green Technology
• Compliant with Energy Efficient Ethernet (IEEE 802.3az)
• RoHS Compliant
MIB/RFC Standards
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• IEEE 802.1p
• RFC2236, IGMP Snooping
• RFC1213 MIB II
• RFC1215 MIB Traps Convention
Ordering Information
• DGS-1100-05PD
• 5-Port Gigabit Smart Managed Desktop Switch, PoE Powered, PoE Pass-through
• Lifetime Warranty
