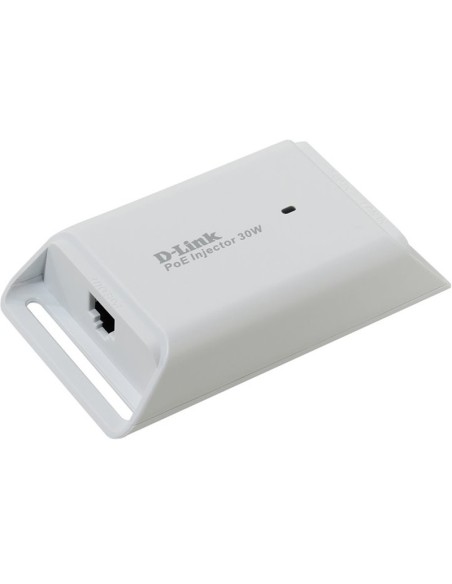

INYECTOR DLINK POE DPE-301GI PN: DPE-301GI EAN: 790069416668
IEEE 802.3at (PoE +)/802.3af (PoE) compatible con DPE-301GI Gigabit PoE+ Inyector está diseñado para proporcionar datos y hasta 30 watios de potencia a dispositivos compatibles con PoE (Power Over Ethernet), tales como cámaras de videovigilancia y puntos de acceso inalámbricos.
Technical Specifications
Ports
PoE + Data Port (out)
Supports half/full-duplex operation
10/100/1000BASE-T port
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3at compliant
IEEE 802.3af compliant
IEEE 802.3ab compliant
Data Port (in)
Supports half/full-duplex operation
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliant
10/100/1000BASE-T port
LED Indicators
Blue: Power On
Green: Link On
Physical
Dimensions (L x W x H)
109.8 x 62.2 x 24.5 mm
Weight
65 grams
Power
Power Adapter: 55 V / 0.6 A
Max Consumption: 32.4 watts
Output: 0.6 A at 55 V
Temperature
Operating: -10 to 50 °C
Storage: -30 to 70 °C
Humidity
Operating: 5% to 95% non-condensing
Storage: 5% to 95% non-condensing
Certifications
CE
FCC
VCCI
RCM
RoHS
BSMI
1 Maximum distance per 802.3u specifications.
